Ceramic Power
Dowpak Part numbering System:
5 Watt: R5W - value - Qty*
10 Watt: R10W - value - Qty*
* Blanc=2 pack, C=100 pack

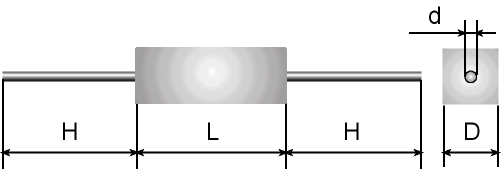

Dimensions:
| WATTS | L | D | O | H | d |
| 5 W | 22 ± 1.5 | 10 ± 1.0 | 9.0 ± 1.0 | 35 ± 3.0 | 0.8 ± 0.1 |
| 10 W | 48 ± 1.5 | 10 ± 1.0 | 9.0 ± 1.0 | 35 ± 3.0 | 0.8 ± 0.1 |
| Resistance Range ( ohm ) | ||
| WATTS | WIRE WOUND | METAL OXIDE |
| 5 W | 0.1 - 100 | 10 - 30K |
| 10 W | 0.1 - 560 | 50 - 69K |
| ITEM | CHARACTERISTICS |
| Tolerance | ±5% |
| Wet load life | ±3% |
| Load life | ±5% |
| Short time overload | ±2% |
| Temperature coefficient | ±250 ppm / °C |
| Effect of soldering | ±1% |
| Dielectric withstanding | 1KV ±2% |
| Insulation resistance | 100 M ohm |
• High temperature stability
• Ceramic flame retardant package.
TABLE OF VALUES IN ohm
| 0.1 | 0.47 | 0.82 | 1.6 | 3.3 | 5.1 | 10 | 20 | 36 | 56 | 110 | 200 | 350 | 510 | 820 | 1.6K | 3.3K |
| 0.15 | 0.5 | 0.91 | 1.8 | 3.6 | 5.6 | 11 | 22 | 39 | 62 | 120 | 220 | 360 | 560 | 910 | 1.8K | 3.9K |
| 0.22 | 0.51 | 1.0 | 2.0 | 3.9 | 6.2 | 12 | 24 | 40 | 68 | 125 | 240 | 390 | 600 | 1K | 2K | 5K |
| 0.27 | 0.56 | 1.1 | 2.2 | 4.0 | 6.8 | 13 | 25 | 43 | 75 | 130 | 250 | 400 | 620 | 1.1K | 2.2K | 10K |
| 0.3K | 0.58 | 1.2 | 2.4 | 4.3 | 7.5 | 15 | 27 | 47 | 82 | 150 | 270 | 430 | 680 | 1.2K | 2.4K | 20K |
| 0.39 | 0.62 | 1.3 | 2.7 | 4.7 | 8.2 | 16 | 30 | 50 | 91 | 160 | 300 | 470 | 750 | 1.3K | 2.7K | 25K |
| 0.43 | 0.68 | 1.5 | 3.0 | 5.0 | 9.1 | 18 | 33 | 51 | 100 | 180 | 330 | 500 | 800 | 1.5K | 3K |
