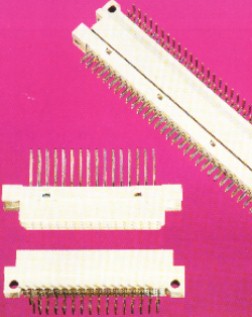

DIN 41612

FEATURES

  • Approved to BS9525 F0004, F0017, F0022 and F0032.
  • Meets the requirements of BT 222, 222T and BS9525 F0011.
  • Standard DIN styles B, C, half B and half C.
  • Reverse DIN styles Q and R.
  • Full and partial contact loading.
  • Pre-tinned terminations as standard.
  • Pre-mate male contacts available fitted in row a.
  • Choice of 0.8mm and 0.6mm diameter terminations.


TECHNICAL DATA

MATERIALS

Insulator Glass filled polyester rated UL94V-0
Contact Copper alloy plated hard acid gold
Termination Tin lead or hard acid gold* (*wire wrap only)


MECHANICAL

Mechanical operations
DIN41612 Class 1 500
DIN41612 Class 2 400
DIN41612 Class 3 50
Insertion and withdrawal force 0.94N max/.
(per contact) 0.19N min.
Contact holding force 0.15N




ENVIRONMENTAL

Climate category 55/125/56
Vibration severity 10Hz to 200Hz, 0.75mm/98m/s²(10gn) duration 6h
Bump severity 390m/s² (40gn), 4000±10
Shock severity 490m/s² (50gn), for 11ms.
Acceleration severity 490m/s² (50gn)

ELECTRICAL

Current
Individual contact (in isolation) at 85°C Tamb. 1.5A max.
All contacts simultaneously at 85°C Tamb. 1.0A max.
Working Voltage 350Vd.c. or a.c. peak
Proof Voltage 1050 Vd.c. or a.c. peak
Contact Resistance (initially) 15mohm max.
Contact Resistance (after conditioning) 20mohm max.
Insulation Resistance (initially) 5Gohm min.
Insulation Resistance (after conditioning 100Mohm min.

MOUNTING DETAILS

STANDARD MALE/REVERSE FEMALE 90° p.c.

STANDARD FEMALE/REVERSE MALE TERMINATIONS


Mould Size

C

E

G

H min.

K

L
32 Cavity

48.26

38.10

50.00

44.40

8.30

10.20
48 Cavity

48.26

38.10

50.00

44.40

10.80

12.70
64 Cavity

88.90

78.74

90.00

85.00

8.30

10.20
96 Cavity

88.90

78.74

90.00

85.00

10.80

12.70


ORDERING INFORMATION (Standard DIN 41612)

SM

96

64

5

A

P

LI

G

H
SERIES/GENDER--------------------------

|

|

|

|

|

|

|

|

|
MOULD SIZE-----------------------------------------

--------

|

|

|

|

|

|

|

|
No. OF CONTACTS---------------------------------

--------

--------

|

|

|

|

|

|

|
CONTACT LOADING------------------------------

--------

--------

--------

|

|

|

|

|

|
CONTACT PITCH-----------------------------------

--------

--------

--------

-------

|

|

|

|

|
PRE-MATING CONTACTS-----------------------

--------

--------

--------

-------

-------

|

|

|

|
TERMINATION STYLE----------------------------

--------

--------

--------

-------

-------

-------

|

|

|
CONTACT FINISH ---------------------------------

--------

--------

--------

-------

-------

-------

-------

|

|
TERMINATION FINISH---------------------------

--------

--------

--------

-------

-------

-------

-------

---

|

BS SERIES

B5034 - BS9525 F0004 - Free male

B5035 - BS9525 F0004 - Fixed female

B5234 - BS9525 F0022 - Free male

B5235 - BS9525 F0022 - Fixed female

SERIES/GENDER

SM - Standard male

SF - Standard female

MOULD SIZE

32 - 2 rows of 16 (half B) Not BS style

64 - 2 rows of 32 (B)

48 - 3 rows of 16 (half C) Not BS style

96 - 3 rows of 32 (C)

No. OF CONTACTS

8, 16, 24, 32, 48, 64, & 96

CONTACT LOADING

1 - Row a only

2 - Row b only

3 - Row c only

4 - Rows a & b

5 - Rows a & c

6 - Rows b & c

7 - Rows a, b, & c

0 - All Rows (BS style)

X - Special loading

 CONTACT PITCH

A - 2.54mm ALL FILLED

E - 5.08mm EVEN ONLY FILLED

PRE-MATING CONTACTS

N - None fitted

No designator (BS styles) - None fitted

P - Fitted positions a1 & a16 (32 & 48 mould size)

      Fitted positions a1 & a32 (64 & 96 mould size)

TERMINATION

L1, L2, L3, L4, L5 & L6 - Male contacts

S0, T1, T2, T3, T4, T5, W1, & W2 - Female contacts

CONTACT FINISH

G - Class 1

L - Class 2

Q - Class 3

TERMINATION FINISH

H - Tinned

I - Tinned (BS styles)













ORDERING INFORMATION (Reverse DIN 41612)

RIM

96

64

5

A

P

TI

G

H
SERIES/GENDER-----------------------------

|

|

|

|

|

|

|

|

|
MOULD SIZE-----------------------------------

--------

|

|

|

|

|

|

|

|
No. OF CONTACTS---------------------------

--------

--------

|

|

|

|

|

|

|
CONTACT LOADING------------------------

--------

--------

--------

|

|

|

|

|

|
CONTACT PITCH-----------------------------

--------

--------

--------

-------

|

|

|

|

|
PRE-MATING CONTACTS----------------

--------

--------

--------

-------

-------

|

|

|

|
TERMINATION STYLE---------------------

--------

--------

--------

-------

-------

-------

|

|

|
CONTACT FINISH ---------------------------

--------

--------

--------

-------

-------

-------

-------

|

|
TERMINATION FINISH--------------------

--------

--------

--------

-------

-------

-------

-------

---

|

BS SERIES

B5412 - BS9525 F0017 - Fixed male

B5413 - BS9525 F0017 - Free female

B5532 - BS9525 F002 - Fixed male

B5533 - BS9525 F0032 - Free female

SERIES/GENDER

QIF - Reverse DIN 2 row female

QIM - Reverse DIN 2 row male

RIF - Reverse DIN 3 row female

RIM - Reverse DIN 3 row male

MOULD SIZE

64 - 2 rows of 32 (Q)

96 - 3 rows of 32 (R)

No. OF CONTACTS

16, 32, 48, 64, & 96

CONTACT LOADING

1 - Row a only

2 - Row b only

3 - Row c only

4 - Rows a & b

5 - Rows a & c

6 - Rows b & c

7 - Rows a, b, & c

0 - All Rows (BS style)

X - Special loading

 CONTACT PITCH

A - 2.54mm ALL FILLED

E - 5.08mm EVEN ONLY FILLED

PRE-MATING CONTACTS

N - None fitted

No designator (BS styles) - None fitted

P - Fitted positions a1 & a16 (32 & 48 mould size)

      Fitted positions a1 & a32 (64 & 96 mould size)

TERMINATION

T1, T2, T5, T5, T6, T8, W1, & W2 - Male contacts

L1, L2, L3, L4, L5 & L6 - Female contacts

CONTACT FINISH

G - Class 1

L - Class 2

Q - Class 3

TERMINATION FINISH

H - Tinned

I - Tinned
